Black paint T Yoke & Washer-11.8x0.8-5.6 TYK17.8x0.8-7.5x4 for sale

Product Features:

In the sound unit, the main function of T Yoke is to conduct magnetic energy when it is energized, but it has no residual magnetism. When the speaker is powered off, the magnetic field disappears, and its magnetism disappears immediately.

Surface painting treatment, and the laminating surface is treated to remove oil stains before laminating.All products are subject to strict quality inspection and the error is within the minimum tolerance.

One-stop service:

H YANKA can match a whole set of speaker accessories for all customers, and cooperate in the way of SKD or CKD.

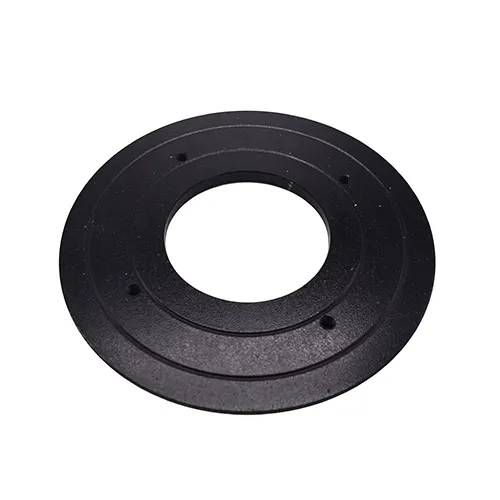

PART OF WASHER:

Color:black,with 4pcs hole

thickness:8mm±0.1mm

OD:118mm±0.5mm

ID:78mm±0.1mm

Distance of Riverting Hole:120mm±0.5mm

PART OF T Yoke:

Color:blue and write,with 4pcs hole

Effective height of Pole:40mm±0.1mm

Diameter of pole :75mm±0.3mm

ID of pole:30mm±0.03mm

Thickness:8mm±0.1mm

OD:178mm±0.8mm
