Best T Yoke & Washer 14.56x0.8-8.06 TYK14.5x0.6-7.5x6.2 with zinc plating blue

Brand Name: H YANKA/OEM
Place of Origin: Zhejiang, China
Supply Ability: 100000 Pieces/Month
Payment Terms: TT , LC , Others
Tags:

Detail

Color: Blue and write,with 6pcs hole
MOQ: 1000pcs

Product Features:

When the speaker is powered off, the magnetic field disappears, and its magnetism disappears immediately. Therefore, the purity of T Yoke will directly affect the working efficiency of the sound unit and some important parameters of nonlinear distortion.

The surface is coated with blue and white zinc, and the laminating surface is treated to remove oil stains before laminating.All products are subject to strict quality inspection and the error is within the minimum tolerance.

We are provide many top quality speaker products, such as louder speaker , subwoofer speaker cone and speaker box.


One-stop service:

H YANKA can match a whole set of speaker accessories for all customers, and cooperate in the way of SKD or CKD.

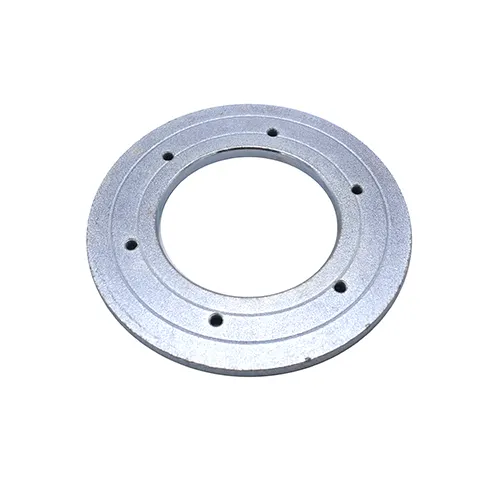

PART OF WASHER:

Color:blue and write,with 6pcs hole

thickness:8mm±0.1mm

OD:145.6mm±0.5mm

ID:80.6mm±0.1mm

Distance of Riverting Hole:105mm±0.5mm

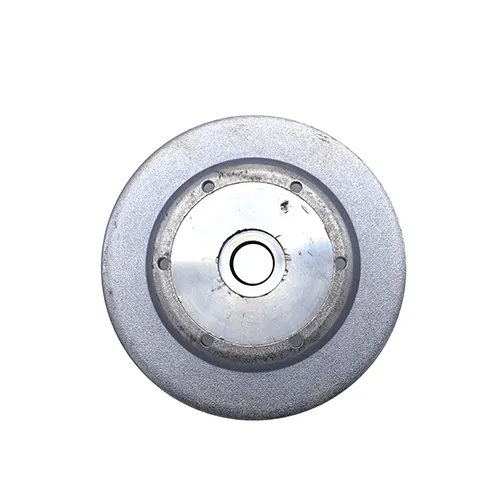

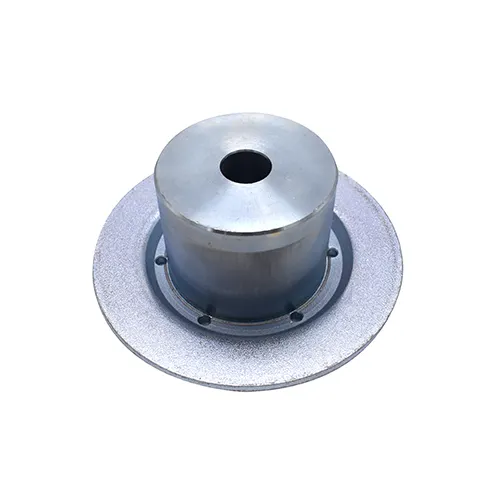

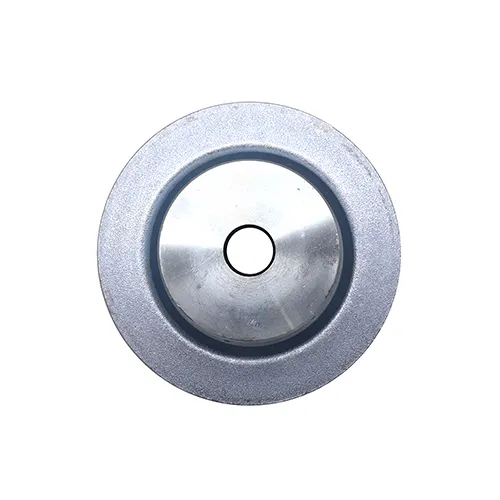

PART OF T Yoke:

Color:blue and write,with 6pcs hole

Effective height of Pole:62mm±0.1mm

Diameter of pole :75mm±0.3mm

ID of pole:20mm±0.03mm

Thickness:6mm±0.1mm

OD:145mm±0.8mm


Hiyanka has been devoted to the R&D and manufacturing of audio products for many years. Excellent product, high-quality and efficient service are our core competitiveness. It is our mission to become the world's outstanding audio resource integrator.
